LG WM4000HBA Washing Machine Manual: Maintenance Guide & Wiring Diagram View

The LG WM4000HBA manual isn’t just instructions—it’s your key to extending washer life, improving performance, and solving issues like drainage, odors, or error codes. From smart diagnostics to a detailed wiring diagram, this guide helps homeowners and technicians maintain the machine efficiently and prevent costly repairs.

Manual

This model falls under the category of washing machines. You’re free to download the User Manual PDF without any cost. This manual is available in English.

Do you have any questions regarding this model (WTW5000DW2)? Go directly to the support option in the header. I will provide the information within 24 hours.

Download Manual

LG WM4000HBA Washer Maintenance Guide

Maintaining the LG model isn’t just a matter of routine—it’s a calculated approach to preserving the machine’s peak efficiency, durability, and hygiene. Crafted with advanced cleaning systems, smart sensors, and precision-built internal components, this high-efficiency washer demands regular, purposeful care.

Daily & Monthly Cleaning Best Practices

Every section of its maintenance process serves a function rooted in longevity. Post-cycle routines, such as wiping the drum and door seal, prevent moisture accumulation and mold formation—issues that silently compromise appliance integrity over time. The drum requires monthly cleansing via the Tub Clean function, essential for eliminating detergent residue and mildew buildup.

Recommended routine cleaning tasks:

  • After completing a wash function, gently dry the door seal and drum interior using a soft cloth to prevent moisture buildup and discourage microbial growth.
  • Leave the door ajar overnight to avoid odor and condensation buildup.
  • Run the Tub Clean operation monthly, especially in high-use or humid environments.
  • Use stainless-steel-safe descalers in hard water areas to remove mineral buildup.
  • Rinse thoroughly after using any cleaner to prevent residue from affecting laundry.

Component-Level Maintenance for Optimal Performance

Neglecting the dispenser drawer can lead to a stubborn buildup of detergent residue and moisture-loving microbes, ultimately disrupting proper detergent flow and hygiene. Monthly removal and warm water cleaning prevent blockages and ensure accurate detergent flow.

The door seal, prone to collecting lint and detergent foam, should be sanitized using a diluted bleach solution—undiluted bleach should never be applied directly, as it may damage the rubber.

Equally important are the inlet valve filters, which regulate water intake and can become clogged due to sediment or scale. Regular inspection prevents “IE” error codes and inconsistent water flow.

The drain pump filter, located behind the lower access panel, must be cleared of lint, coins, and fabric strands to avoid drainage failure.

Key periodic maintenance tasks include:

  • Clean the detergent drawer and inserts every 2–4 weeks.
  • Disinfect the door seal monthly with diluted bleach solution.
  • Check and rinse inlet filters to ensure proper water pressure.
  • Remove and clean the drain pump filter to prevent water retention and clogging.

Seasonal Protection & Smart Diagnostic Features

Cold climate protection is built into the machine design philosophy. Using non-toxic RV antifreeze prevents water from freezing inside hoses and damaging internal parts—an essential step for those storing the washer in unheated areas. After antifreeze use, a Rinse+Spin cycle prepares the drum for regular operation.

Automatic alerts like the TC-L tub clean indicator help schedule internal cleaning based on usage patterns, while the Control Lock feature prevents accidental starts during cleaning or by children. These built-in systems reflect LG’s engineering foresight, offering protection far beyond basic functionality.

Cold climate and smart feature tips:

  • Use non-toxic antifreeze before winter storage to protect hoses and pumps.
  • Run a spin cycle to circulate antifreeze and drain excess fluid.
  • Activate Control Lock during maintenance to avoid accidental operation.
  • Respond promptly to TC-L alerts by running the Tub Clean cycle.

LG WM4000HBA Washer Wiring Diagram View

The wiring diagram for this unit offers a detailed blueprint of the washer’s internal electrical architecture, enabling accurate diagnostics and efficient repair planning. Each wire path, connector, and relay is mapped to help technicians or advanced users trace electrical signals across the main control board, sensors, and motor systems. Unlike generic schematics, this diagram reflects model-specific logic that supports LG’s Smart Diagnosis and Inverter Direct Drive technologies.

It serves as an essential reference when troubleshooting power faults, communication errors, or component-level malfunctions. Analyzing the wiring paths reveals the root cause of electrical issues, allowing precise intervention and preventing wasted time on misdiagnosed repairs. Understanding the wiring flow also enhances safety protocols during disassembly or voltage testing, making it a critical asset for service professionals and technically inclined owners alike.

How to Read the LG WM4000HBA Washer Wiring Diagram (Beginner-Friendly)

Reading the wiring diagram of the LG machine may seem complex at first glance, but with a basic understanding of symbols and flow, even a beginner can follow the logic. A wiring diagram is essentially a visual map showing how electricity moves through the washer’s components — from the power supply to the control board, motor, sensors, valves, and safety features.

Key Things to Know When Reading the Diagram:

  • Lines represent wires: Straight lines connecting components indicate electrical wiring. These often show color codes (e.g., BLK for black, RED for red) that match physical cables inside the machine.
  • Boxes are components: Small rectangles or labeled shapes show parts like the motor, heater, drain pump, door switch, or control board.
  • Symbols matter: Look for common electrical symbols like switches (⏁), ground (⏚), or resistors. A structured key—typically positioned at the base of the diagram—clarifies component symbols and wire codes, making the layout easier to interpret.
  • Follow the power path: Start at the power input, then trace the line to see how voltage reaches each component. This helps identify where a circuit might be broken.
  • Connectors and terminals: Numbers or letters on wiring points (e.g., CN1, PWB, T1) show where cables plug into boards or modules. These are vital when testing or replacing parts.
  • Color codes: Pay attention to wire color markings like WH (white), BL (blue), GY (gray), or YL (yellow/green for ground). These help match the diagram with real-world wiring inside the washer.

Wiring Diagram:

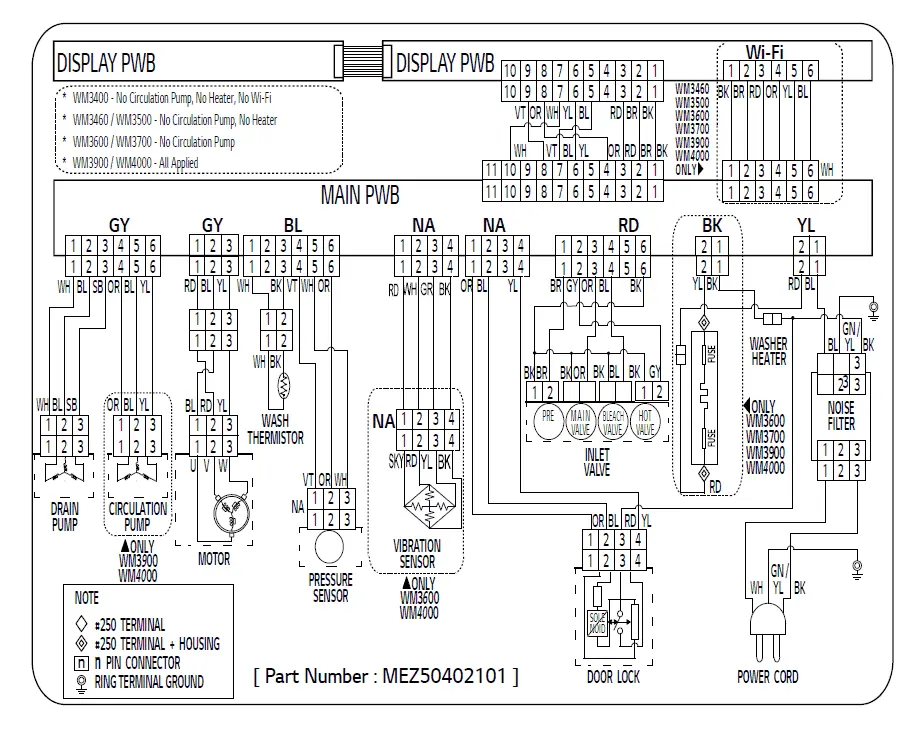

LG Washer wiring diagram with labeled internal components.
Wiring layout from LG Model official service manual

Frequently Asked Questions (FAQs)

It’s recommended to run the Tub Clean cycle once a month to prevent residue buildup and musty odors. If the machine handles frequent loads or if there’s already an unpleasant smell, run the cycle weekly for three consecutive weeks using a drum cleaner or diluted bleach.

Video: How to clean the drain pump filter—step-by-step based on the manual.

Source: LG Global

A clogged drain pump filter is the most common cause. Turn off the power, open the drain filter cover, and remove any trapped debris or lint. Always drain remaining water using the small hose before opening the filter to avoid spillage.

The official service manual includes a complete wiring diagram with labeled components and connectors. It’s essential for technicians or experienced users performing diagnostics or repairs. Always unplug the unit before inspecting internal wiring.

The “tcL” alert is a reminder to clean the drum. It’s an automatic feature that helps maintain hygiene and efficiency. Run the Tub Clean cycle without laundry and use a suitable cleaner to remove detergent buildup, mold, or mineral deposits.

No. This washer is designed for high-efficiency (HE) detergents only. Using regular detergent can lead to excess suds, reduced cleaning performance, and even internal damage over time.

First, check if the inlet water valves are fully open. If that’s not the issue, inspect the inlet filters behind the machine — they may be blocked by sediment or hard water scale. Clean them gently with vinegar and a soft brush, then flush the hoses before reconnecting.

Control Lock turns off all buttons and prevents settings from being changed during operation — useful for homes with children. It can be activated or deactivated by holding down the designated button (usually marked with a lock icon) for three seconds.

Extra care is needed. Drain all water from hoses and the pump filter if the appliance is stored in freezing temperatures. Adding a gallon of non-toxic RV antifreeze into the drum and running a short spin cycle helps protect internal parts from freeze damage.

Yes. Unplug the machine for 1 minute, then plug it back in. This soft reset often clears temporary errors. For persistent issues, refer to the error codes on the display and consult the troubleshooting section of the manual.

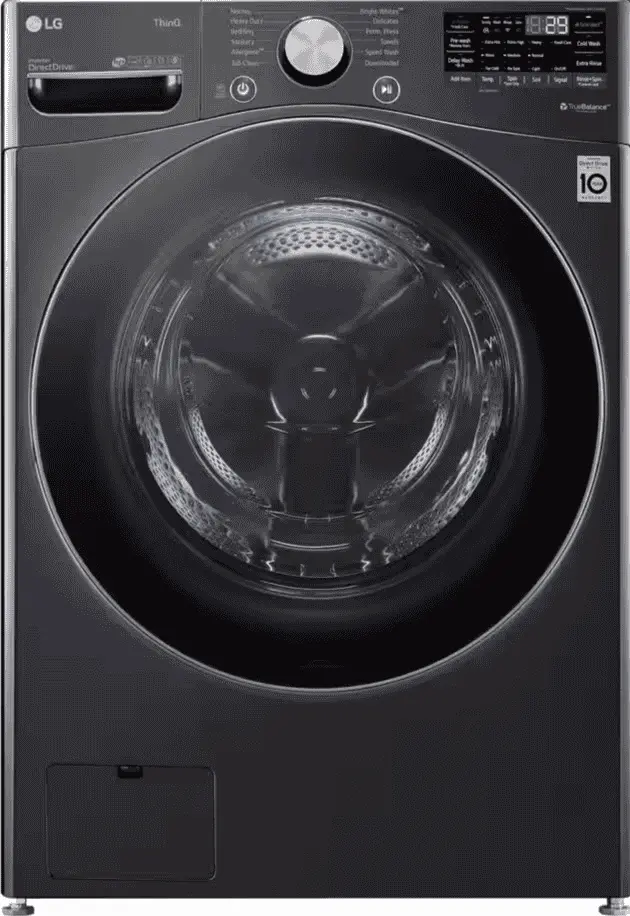

LG Washer front-load washer with smart controls and black finish.
