LG WT1201C Top-Load Washer Manual – Specifications and Warranty

The LG WT1201C top-load washer delivers reliable performance when installed and operated according to the User Manual. Position the washer on a stable, level surface, connect the water inlet hoses securely, and attach the drain hose at the recommended height to prevent leaks or siphoning. Load laundry evenly around the agitator without overfilling, add the correct detergent, and select the appropriate cycle on the control panel as guided by the manual.

Regular maintenance, including cleaning the drum, detergent dispenser, and water inlet filters, and running the monthly tub clean cycle as instructed in the LG WT1201C User Manual, ensures optimal washing efficiency and extends the appliance’s lifespan.

LG Washing Machine Manuals

Manual

This model falls under the category of washing machines. You’re free to download the User Manual PDF without any cost. This manual is available in English.

Do you have any questions about this model (WT1201C )? Go directly to the support option in the header. I will provide the information within 24 hours.

Support 24/7
Download Manual PDF

LG WT1201C Washer Specifications

  • The LG WT1201CW top-load washing machine combines robust performance with energy-efficient operation, designed to provide a reliable laundry experience for households of all sizes.
  • Featuring a stainless steel drum and a lightweight, corrosion-resistant plastic tub, the appliance ensures long-term durability while maintaining quiet operation through its advanced load balancing system.
  • The built-in LED display and intuitive button controls simplify cycle selection across eight washing programs, including cold, cotton, and delicate/silk. With a maximum spin speed of 1100 RPM, the washer effectively extracts water, reducing drying time.
  • Additional features such as a 3-way dispenser tray, child lock, inverter direct drive motor, adjustable feet, and a delayed start timer enhance convenience and safety.
  • Certified by ENERGY STAR, the LG WT1201CW delivers efficiency and sustainability while maintaining compact dimensions suitable for freestanding placement.

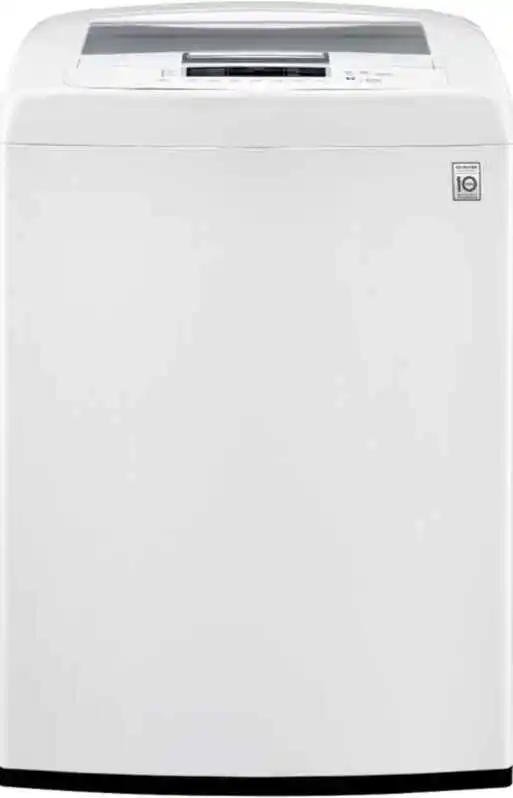

LG WT1201C top-load washer with LED display, stainless steel drum, 1100 RPM spin, and ENERGY STAR efficiency.
SpecificationDetails
BrandLG
ModelWT1201CW
Appliance TypeTop-load Washing Machine
Drum MaterialStainless Steel
Tub MaterialPlastic
Built-in DisplayLED
Control TypeButtons
Maximum Spin Speed1100 RPM
Washing Programs8
Load Balancing SystemYes
Child LockYes
Dispenser Tray Type3-way
Delayed Start TimerYes, up to 19 hours
Motor TypeBeltless Inverter Direct Drive
Energy EfficiencyENERGY STAR Certified
Dimensions (W×H×D)685 × 1016 × 711 mm
Weight60.78 kg
Package Dimensions (W×H×D)736 × 1092 × 787 mm
Package Weight68.49 kg

LG Model # WT1201C Top-Load Washer Warranty

The LG WT1201C top-load washer comes with a limited warranty covering defects in materials and workmanship under normal household use.

The warranty ensures repair or replacement of the product at LG’s discretion during the coverage period, valid only for the original retail purchaser and when purchased through an authorized LG dealer in the U.S., including territories.

In-home service is provided when accessible, and if unavailable, LG may transport the product to an authorized service center. The warranty excludes damages caused by misuse, accidents, natural disasters, unauthorized modifications, incorrect installation, or cosmetic issues. Repairs using non-approved parts, products with altered serial numbers, or items used commercially are also excluded.

Replacement parts or products may be new or factory-remanufactured and are warranted for the remaining period of the original warranty or ninety days, whichever is longer. Customers must retain the original purchase receipt for warranty claims. For service, contact LG at 1-800-243-0000

Warranty DetailsInformation
CoverageDefects in materials or workmanship under normal household use
Eligible PurchaserOriginal retail purchaser only
Service TypeIn-home service or transportation to authorized service center
ExclusionsMisuse, abuse, accidents, natural disasters, unauthorized modifications, incorrect installation, cosmetic damage, commercial use, altered serial numbers, non-approved parts
Replacement PartsNew or factory-remanufactured; coverage for remaining original warranty or 90 days, whichever is longer
Warranty TransferabilityNon-transferable
Warranty RegionUnited States and U.S. Territories
Proof of PurchaseRequired (dated receipt or delivery ticket)
Contact for Service1-800-243-0000 or

LG WT1201C Washing Machine Troubleshooting List

  • Slow or No Water Drain:
  • Slow or No Water Fill:
  • Possible Causes: Water taps not fully open, hoses kinked or bent, clogged inlet filters, low household water pressure.
  • Solutions: Open water taps completely, straighten hoses, clean inlet filters, and verify adequate water pressure from other faucets.
  • Washer Will Not Turn On:
  • Possible Causes: Power cord not plugged properly, blown fuse, tripped circuit breaker, or power outage.
  • Solutions: Securely plug into a grounded 3-prong outlet, reset circuit breaker or replace fuse without exceeding recommended capacity.
  • Lid Not Closing or Lid Lock Errors:
  • Possible Causes: Lid not properly closed or lid lock switch error.
  • Solutions: Close the lid firmly, press START/PAUSE, and ensure LID LOCK light illuminates. Call service if error persists.
  • Water Level Too High:
  • Possible Cause: Faulty water valve.
  • Solution: Close water taps, unplug washer, and contact service.
  • Clutch Error:
  • Possible Cause: Mechanical malfunction.
  • Solution: Unplug washer and call service.
  • Out of Balance Load (uE/Error Codes):
  • Possible Causes: Load too small, heavy items mixed with lighter items, tangling of clothes.
  • Solutions: Add items to small loads, separate heavy and light articles, manually redistribute tangled items to allow proper balance for spinning.
  • Thermistor or Water Level Sensor Error:
  • Possible Causes: Sensor malfunction.
  • Solutions: Unplug washer, close water taps if necessary, and call for service.
  • Thermal Overload Protection Activated (LE Code):
  • Possible Cause: Motor overheating.
  • Solution: Allow washer to rest for 30 minutes to cool, then restart. Call service if LE code remains.
  • Automatic Drain Display (‘dr’ Code):
  • Cause: Washer detects water drain required after 4 minutes of error message.
  • Solution: Wait until draining completes before restarting the cycle. All functions remain suspended during draining.

Frequently Asked Questions (FAQs)

 An “OE” error typically indicates a drainage issue. Ensure the drain hose is not clogged, kinked, or obstructed. Additionally, check the drain pump filter for any blockages. If the problem persists, inspect the drain pump for functionality.

 Noisy spin cycles may result from worn drum bearings, a loose drive pulley, or foreign objects trapped between the tub and drum. Examine the basket for debris, and inspect the shock absorbers and suspension springs for wear or damage. Tighten any loose bolts on the drum assembly.

 To reset the washer, unplug it from the power outlet and leave it unplugged for one minute. After one minute, plug the washer back in, then open and close the lid six times within 12 seconds to reset the control board.

 The “dE” error code indicates that the lid is not properly closed. Ensure the lid is securely shut, and the lid lock light is illuminated. If the error persists, inspect the lid switch for functionality.

 This issue may be due to a clogged drain pump or hose, a faulty lid switch, or a malfunctioning pressure switch. Inspect the drain pump and hose for blockages, test the lid switch for continuity, and verify the water level sensor wiring.

 Locate the drain pump filter, typically at the bottom front of the washer. Open the access panel, unscrew the filter cover, and remove any debris. Clean the filter under running water before reassembling.

 The LG WT1201C washer has a 4.3 cu. ft. ultra-large capacity, allowing for larger loads and reduced wash cycles.

 To register your washer, visit the LG support website and enter your product details, including model number and serial number. Alternatively, you can mail the registration information to the LG Customer Information Center.

Check that the water supply taps are fully open, and ensure the inlet hoses are not kinked or clogged. Clean the inlet filters if necessary, and verify adequate water pressure by testing other faucets in the house.

To prevent unbalanced loads, evenly distribute clothes inside the drum, avoid overloading, and mix heavy items with lighter ones. If the washer detects an unbalanced load, it will attempt to redistribute the clothes automatically.
