Download the Official Samsung WF42H5000AW/A2 Service Manual (Includes Circuit & Wiring Diagrams)
Looking to repair or troubleshoot your Samsung WF42H5000AW/A2 washing machine? You’re in the right place. This official service manual includes everything you need to understand, maintain, and fix your appliance — from detailed technical specifications to step-by-step repair instructions. It also comes with the complete circuit and wiring diagrams, making it easier to trace electrical connections and diagnose faults.
Whether you’re a professional technician or a DIY user, having the correct documentation makes all the difference.
Download Official Service Manual
👉 The full service manual — including circuit and wiring diagrams — is available below. Scroll down and click the download button to get your copy

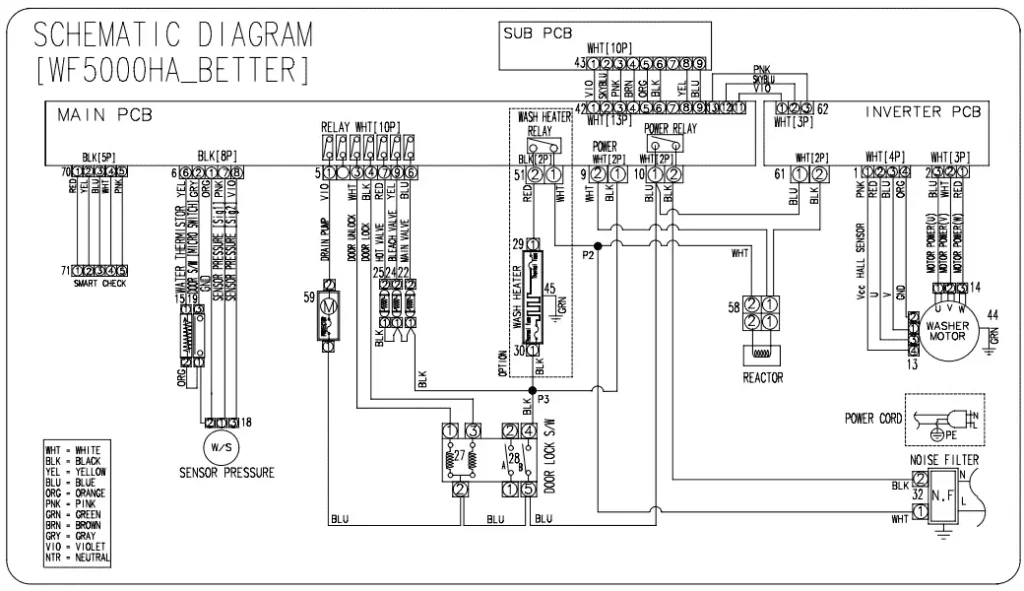

Wiring and Circuit Diagram for Samsung WF42H5000AW/A2 Washing Machine
The official wiring and circuit diagram for the Samsung washer shows exactly how Power flows through every component — from the power plug to the control board, inverter, motor, sensors, and valves. Each wire in the diagram is color-coded and labeled just like inside the actual machine.
This makes it easy to identify faulty connections or trace issues like no power, no spin, or draining problems. With both high-voltage (motor, pump, heater) and low-voltage (sensors, switches, control panel) circuits mapped out, this diagram is a must-have for anyone doing accurate diagnostics or repair.
Main Components Covered in the Wiring & Circuit Diagram

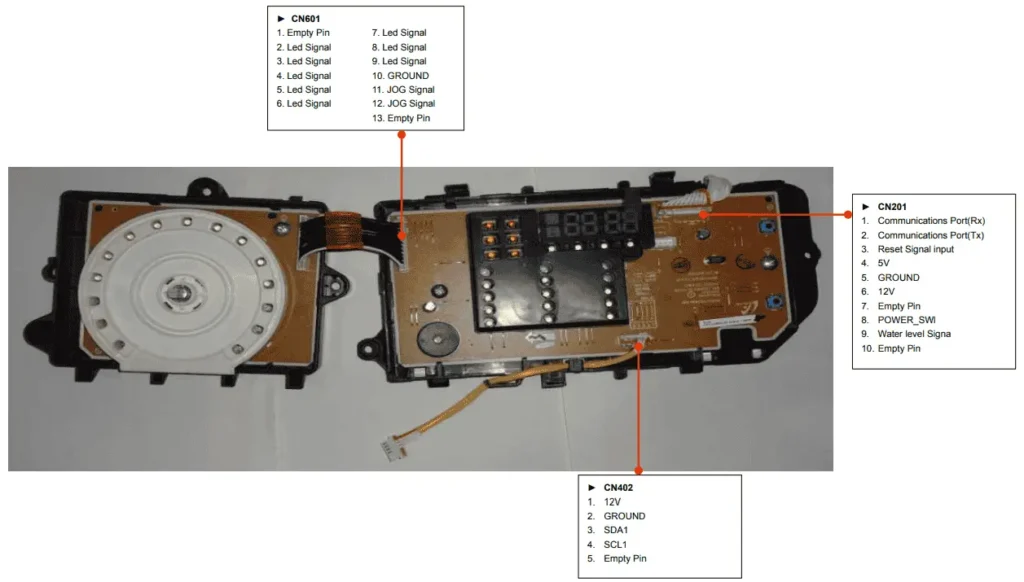

- Main PCB (Control Board): Manages all washing machine functions, including motor control, water level sensing, and heating, while coordinating with connected sensors.
- Drive Motor: Rotates the drum during wash and spin cycles, receiving variable speed signals from the inverter.
- Inverter PCB: Converts incoming electrical Power and regulates motor speed based on instructions from the control board.
- Door Lock Switch: Detects door status and ensures it’s securely locked before the washer can begin a cycle.
- Water Level Sensor: The water level sensor monitors the drum’s fill level and generates analog signals to control water intake precisely.
- Thermistor (Temperature Sensor): Tracks water temperature and helps maintain optimal heat settings during cycles.
- Drain Pump: Removes wastewater after each cycle; activated during spin and drain phases.
- Water Inlet Valves: Open to allow cold or hot water into the drum when triggered by the control logic.
- Display & Control Panel: Lets users select cycles, view status, and interact with machine functions.
- Heater (if included): Heats water during hot wash cycles; controlled through internal relays on the main board
Electrical Path Flow – Based on Diagram:
- Power Supply → Noise Filter → Main PCB
- Main PCB → Inverter PCB → Drive Motor
- Main PCB → Sensors (Water level, thermistor, door switch)
- Main PCB → Output Components (Drain Pump, Water Valve, Heater)
Each connection is clearly labeled with wire color codes, PINs, and voltage levels in the diagram, making diagnostics straightforward.
Diagnostic & Repair Use (SEO-Focused Summary):
This diagram helps trace electrical faults, such as:
- Washer not starting
- Motor not spinning
- Drain pump failure
- Sensor signal errors
- Ideal for:
- Testing continuity
- Checking voltage at test points
- Replacing faulty wiring or connectors
These diagrams are for reference only and have been taken directly from the official Samsung WF42H5000AW/A2 service manual. For full instructions, click the “Download Manual” button above, read carefully, and apply responsibly.
