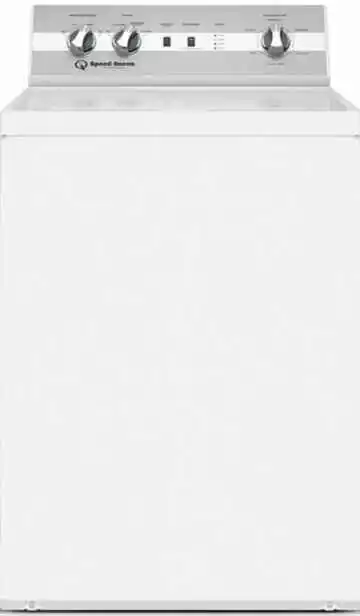

Speed Queen TC5003WN User Manual – Troubleshooting and Specifications

Owning a Speed Queen unit means reliable performance, but like any appliance, occasional issues may occur. Before calling for service, try these expert troubleshooting methods to save both time and money.

Common Operating Issues and Solutions

Washer Won’t Fill

• Confirm that the power cord is fully inserted into the outlet.
• Check that both hot and cold water supply faucets remain open.
• Ensure the washer lid is closed securely.
• Inspect fill hoses for kinks or twists restricting water flow.
• Press the Start/Pause button firmly to begin operation.
• Verify control settings match the desired cycle.
• Remember, during the Normal Eco cycle, the rinse stage uses a spray rinse rather than a full tub fill.
• Confirm that the final spin from the previous cycle has completed.
• Examine household fuses or circuit breakers for faults.
• Clean inlet screens on both the water mixing valve and faucet-end hose filters to remove sediment buildup.
• Check that the drain hose installation prevents siphoning during cycles.
• Replace aftermarket flood-safe hoses if they trigger false shutoffs; factory-supplied hoses are recommended.

Washer Won’t Start

• Secure the lid in the locked position.
• Confirm power cord connection at the wall outlet.
• Select appropriate cycle settings on the control panel.
• Test household fuses or circuit breakers for power interruptions.

Washer Won’t Agitate

• Lid must remain closed for agitation to function.
• Press Start/Pause button to resume cycle.
• Confirm power cord remains plugged in.
• Inspect electrical fuses or circuit breakers.
• If the drive belt is damaged, professional service will be required.

Washer Won’t Spin

• Confirm lid closure and lock.
• Press Start/Pause button to continue.
• Check wall outlet connection and verify breaker status.
• A broken drive belt requires service replacement.

Washer Stops or Pauses Mid-Cycle

• Short pauses before wash and rinse spins are normal.
• If interruption persists, inspect household breaker or fuse box.

Error Codes and Diagnostic Indicators

Drain Error – Water Not Emptying

• Indicates water remains inside the washer at cycle end.
• Inspect drain hose and receptacle for blockages or incorrect installation.
• Reset machine by unplugging for 15 seconds.

Pressure Sensor Error – Water Level Detection Fault

• Control cannot sense water level accurately.
• Disconnect power, wait 15 seconds, and contact service if error continues.

No Water Flow Error – Incomplete Fill

• Washer fails to reach required water level within 5 minutes.
• Verify water faucets are fully open and hoses are free from kinks.
• Clean inlet screens on both the mixing valve and faucet ends.
• Reset by unplugging for 15 seconds.

Overflow Error – Excessive Water Level

• Machine fills beyond safe level and automatically pumps water out if lid is locked.
• If overflow persists, disconnect power and arrange service inspection.

Motor Overload Condition

• Flashing Soak light signals potential motor strain.
• Reduce load size to prevent overheating.
• If condition repeats three times, the washer will display Motor Overload Error.

Motor Overload Error – Protection Triggered

• Detected when motor temperature rises excessively.
• Ensure the tub is not overloaded with heavy fabrics.

All Status Lights Flashing

• Disconnect power for 15 seconds and reconnect.
• If flashing continues, professional service will be necessary.
