Maytag BRAVOS XL User Manual – Safety & Troubleshooting

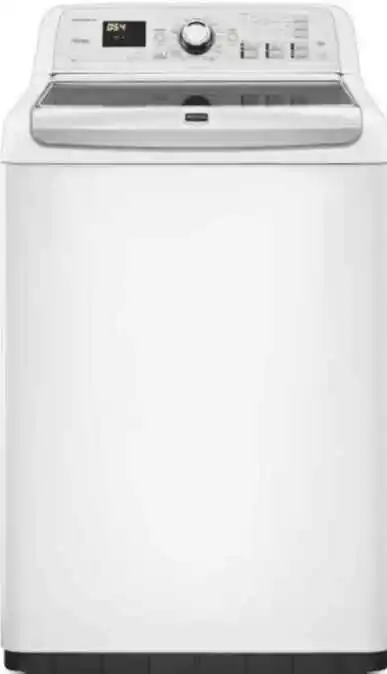

The Maytag BRAVOS XL User Manual offers a comprehensive guide to understanding and maintaining one of the most reliable top-loading washers in its class. Designed for efficiency and durability, this appliance laundry combines advanced cleaning technology with user-friendly controls. Whether it’s tackling large laundry loads or navigating specialized wash cycles, this manual provides clear instructions, safety guidelines, and troubleshooting tips to ensure long-lasting performance.
From installation details to maintenance routines, every section is crafted to help maximize the machine’s potential while minimizing common issues. Ideal for homeowners seeking convenience without compromising on care, this manual serves as a valuable tool for smooth daily operation.
Source: TheLightHouseLady / YouTube
Manual
This model falls under the category of washing machines. You’re free to download the User Manual PDF without any cost. This manual is available in English.
Do you have any questions regarding this model (BRAVOS XL)? Go directly to the support option in the header. I will provide the information within 24 hours.
Safety Instructions for Maytag BRAVOS XL Washer
Ensuring safety during operation and maintenance of the top-loading washing machine is critical not only for protecting the machine’s internal components but also for minimizing risk to surrounding environments and users. Although engineered with multiple built-in safeguards, consistent adherence to safety protocols dramatically extends both the appliance’s performance and reliability.
This safety guide outlines essential measures that prevent hazards, support efficient function, and reflect professional-level awareness expected in modern laundry systems.
Electrical Safety and Installation Precautions
Proper electrical connection forms the foundation of safe washer operation. This Model BRAVOS XL must be connected to a grounded, three-prong outlet rated for residential voltage. Connecting the washer through extension cords or plug adapters undermines electrical stability and significantly elevates the chances of overheating, short-circuiting, or potential fire hazards.
It’s vital to ensure the power cord is intact and the outlet is free from moisture or corrosion. Installation should be conducted on a level surface away from high-humidity zones or direct heat sources. When uncertain, consulting a certified electrician guarantees compliance with regional electrical codes and maximizes long-term performance.
Operational Safety and Load Handling
Overloading the drum or washing items not suited for machine wash can lead to internal imbalance, excessive vibration, and long-term motor strain. All garments should be checked for metal parts, sharp objects, or excess debris that could damage the washer’s interior drum or clog its drainage system.
Using the correct detergent type, preferably high-efficiency (HE) formulas, ensures minimal suds buildup and prevents sensor malfunctions. The lid should never be forced open during active spin cycles, as automatic locking mechanisms engage for user protection.
Child Safety and Emergency Precautions
The BRAVOS XL includes a lid lock feature that activates during operation, preventing accidental opening. However, additional safety measures should be taken in homes with small children.
Power supply must be fully shut off prior to initiating any internal cleaning, inspection, or maintenance tasks to prevent accidental electrical discharge or component damage.
In case of unusual noise, smoke, or system error, immediate shutdown followed by professional inspection is advised. The area around the washer should remain free of clutter to avoid tripping hazards or accidental obstruction of ventilation.
Maytag BRAVOS XL Troubleshooting
Top-loading washing machine like this model BRAVOS XL are designed with intelligent diagnostics and durable hardware, but performance issues may still occur over time. Addressing minor faults early prevents long-term system degradation, protects internal components, and saves service call expenses. This guide outlines common operational issues and field-tested solutions recommended by certified technicians and product engineers.
Washer Vibration, Noise, and Movement Issues
Unusual vibrations or loud banging typically point to misalignment, flooring instability, or unbalanced loads. The washer must sit level on a solid surface, with all four feet locked. Wooden subfloors or uneven tiles often require a stabilizing base — a ¾” plywood sheet can reduce bounce and noise. Clothes should be arranged loosely around the washplate, not stacked at the center. Avoid single-item washes; always balance bulky pieces with lighter garments.
Drainage, Water Flow, and Fill Problems
When drainage slows or the washer takes too long to fill, the root cause often lies in hose configuration, clogs, or reversed connections. Over time, fine particles can accumulate on the inlet screen, limiting water intake efficiency.
Periodic examination and cleaning of these filters help maintain steady water pressure and prevent fill-related interruptions. Confirm that both hot and cold hoses are correctly placed — reversed connections trigger temperature inaccuracies and error codes.
Avoid sealing drain openings with tape, and keep hose elevation below 96 inches to allow gravity-assisted draining.
Detergent-Related Faults and Cleaning Efficiency
Excess suds, lingering residue, or poor rinsing frequently result from incorrect detergent use. Only HE (High Efficiency) detergent should be used — standard formulas produce dense foam that interferes with spin cycles and drainage. Overdosing leads to Sd (Suds) error codes and reduced wash quality. Always follow the detergent label for dosage, adjusting for soil level and load size. Use the RINSE/DRAIN & SPIN cycle if excessive suds appear during operation.
Error Code Glossary – Maytag BRAVOS XL Washing Machine
Smart diagnostics in the Maytag laundry allow users to identify problems through a series of digital error codes quickly. Understanding these codes helps reduce downtime, prevent further mechanical stress, and often eliminates the need for professional service. Below is a breakdown of the most frequently displayed washer fault codes and their engineered meanings.
uL – Unbalanced Load:
An off-center or heavy load is triggering the automatic load-balancing protocol. When an imbalance is detected, the washer initiates a self-correction cycle. If the load remains unstable, repositioning the garments manually may be required. Open the lid, rearrange garments evenly around the washplate, close the lid, and press START/PAUSE to resume operation.
SD – Excessive Suds Detected:
The washing machine is responding to foam buildup from non-HE detergent or overuse. Excess suds interfere with proper rinsing and can halt the cycle. Allow the suds-reduction routine to complete automatically. To prevent recurrence, switch to an HE-approved detergent and follow dosing instructions strictly.
LF – Long Fill Time:
The washer is unable to fill with water within the expected time frame. Causes may include clogged inlet valve screens, closed water faucets, or hose kinks. Inspect water supply lines and remove any obstructions. Confirm full activation of both water supply lines to maintain proper inlet pressure during the fill cycle.
dL – Lid Lock Failure:
The lid is not securing properly. An item may be obstructing the lock mechanism, or the lock itself may be faulty. Remove any visible objects near the lid area. If the issue persists, a component-level inspection may be required.
HC – Hot and Cold Hoses Reversed:
At the end of the cycle, this error indicates that the inlet hoses are installed incorrectly — hot connected to cold and vice versa. Shut off the water supply, disconnect both hoses, and reconnect them to the correct inlets as labeled.
Ld – Long Drain Time:
Water is taking longer than expected to exit the tub. This often points to an incorrectly installed or blocked drain hose. Ensure the hose is properly fitted and that its height does not exceed 96 inches. Remove any visible clogs.
F## – System Error Code:
A general fault has been detected. Press START/PAUSE to clear the code. If the error recurs, contact a certified technician to diagnose the internal electronic control system.
Fd – Factory Default Mode Activated:
This indicates that the washer has been reset to its original factory settings. No user action is typically needed unless this was unintended. The display briefly shows “Fd” before returning to standby mode.
General:
Brand | Maytag |
Model | BRAVOS XL |
Product | Washing Machine |
Language | English |
FileType | User Manual (PDF) |
File Size | 2.63MB – (Pages – 48) |
